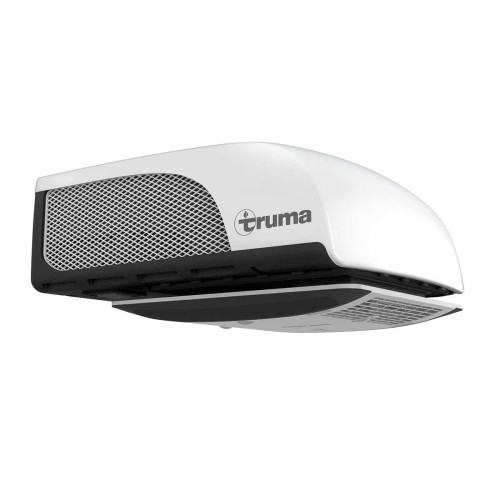

Truma Aventa Compact Plus - Air Conditioner

Brand: Truma
Product Code: Truma Aventa Compact Plus

Available Options

     0 reviews  |  Write a review

Truma Aventa compact plus

Compact cooling power for van conversions to large motorhomes


·        Fits even on roofs with little space

·        Extremely quiet operation

·        Very light roof-mounted air conditioning system


More details about Truma Aventa compact plus

The Aventa compact plus roof-mounted air conditioning system impresses with maximum power in a minimum amount of space. The housing is compact yet boasts 2,200 watts of cooling power. This gives it an extra 500 watts of power compared to the Aventa compact making it in no way inferior to its younger sibling.

The Aventa compact plus is as small as it is light, so it fits on almost any leisure vehicle roof. This applies even if the roof-mounted air conditioning system shares the space with a top-box, solar panel and satellite dish. With its considerable cooling capacity, it’s not just ideal for smaller van conversions. The Aventa compact plus is also suitable for larger motorhomes, beneficial if you want to powerfully cool several areas at once. It extracts moisture from the air at the same time as it cools, which contributes to a pleasant room climate.


The compressor noise has been minimised, making the Aventa compact plus one of the quietest and lightweight roof-mounted air conditioning systems on the market.

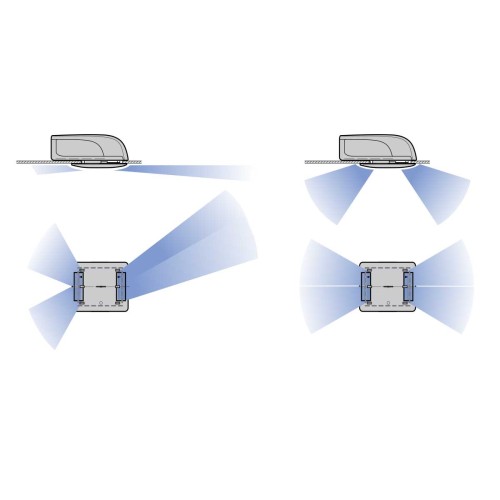

The Air distributor small’s individual adjustment options ensure that the cool air is distributed exactly where you want it. All you need to do is adjust the air outlets according to your personal preferences. The Air distributor small is designed to be so flat that the passage height is barely affected.


To operate the air conditioning system, use the remote control supplied or the CP plus digital control unit (sold separately). The Aventa compact plus can also be integrated into the iNet system and controlled via an app.


·        The Truma Aventa compact plus roof-mounted air conditioning system fits on almost any leisure vehicle roof.


·        You can control the Aventa compact plus intuitively with the remote control.


·        The roof-mounted air conditioning system’s housing and internal air distributor are very compact.





Technical Data

Power supply                                                 230 V – 240 V ~, 50 Hz

Power consumption, cooling                      4.4 A

Start-up current                                            28 A (150 ms)

Cooling power                                               2200 W

Volumetric air flowmax.                              400 m³/h

Deployment range                                        +4 °C to +40 °C

Maximum incline during operation           8%

Weight (without installation material)     approx. 29.5 kg

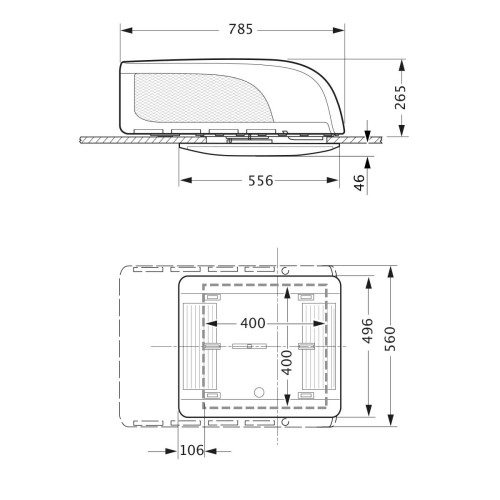

Dimensions (L x W x H)

Outer dimensions (L x W x H)                     785 x 560 x 25 mm

Inner dimensions (L x W x H)                      556 x 496 x 46 mm (Air distributor small)

Roof cut-out (L x W):                                    380 x 350 mm / 400 x 400 mm

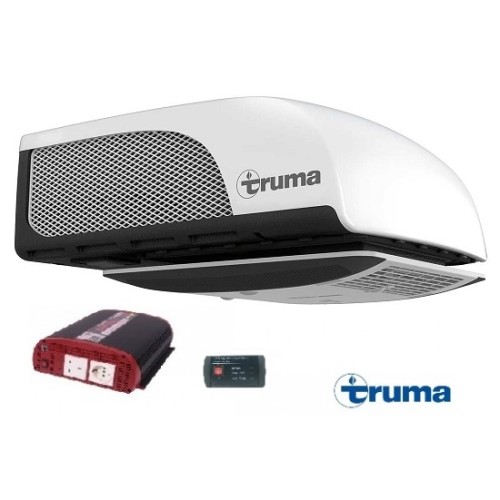

12v DC inverter Kit

The 12v DC inverter kit is wired into the motorhomes/campervans vehicle battery and will only work whilst the engine is running, as the power output of the air conditioner unit would flatten the leisure batteries in a very short period of time (matter of minutes). - This is an an aftermarket inverter (not Truma) with switching relay.
