Truma Aventa Compact - Air Conditioner GEN2

Truma Aventa Compact (2nd generation)

For minimalists who don't want to miss out on anything.

The 2nd Generation Aventa Compact is Truma’s lightest roof air conditioner. Despite its low weight, it is impressive with its 1700 W of cooling power. This means that any recreational vehicle with a length of up to 6 metres remains pleasantly cool at all times.

·        Particularly quiet thanks to the new Night Mode

·        Thanks to various mounting accessories it is suitable for all common vehicle roofs

·        1200 W heating power

·        Due to small dimensions particularly suitable for conversion and retrofitting

·        5-year parts warranty when installed by an authorised Truma Partner (Rhino installs)

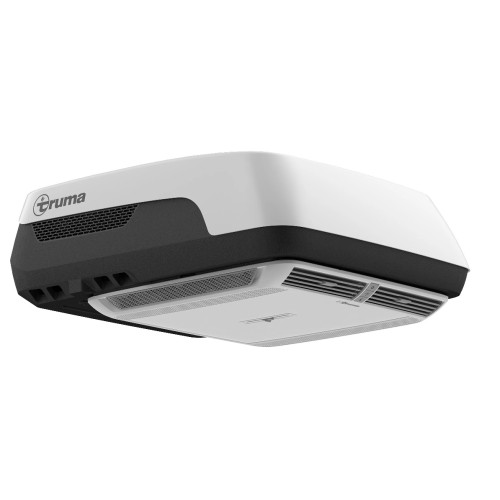

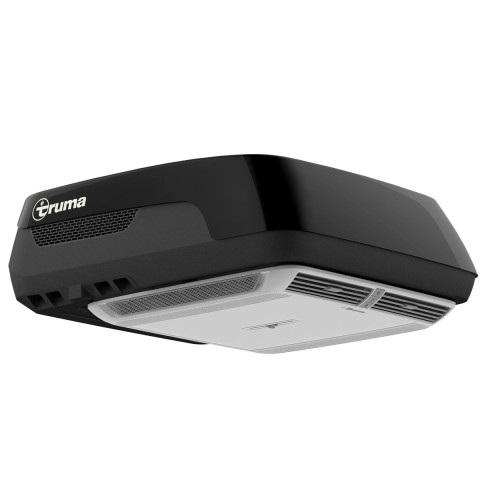

·        Available in black and white

Light

Thanks to its compact design and new compressor, the 2^nd Generation Truma Aventa Compact is their lightest roof air conditioner.

Quiet

The roof air conditioning system is impressive with its particularly low noise level. Thanks to the seamlessly adjustable compressor and fan, vibrations and noise are reduced to a minimum.

Versatile

Whether via panel, remote control or mobile phone. The Truma 2^nd Generation Aventa Compact can be controlled according to your wishes*.

Safe

When install by Rhino installs Truma will provide you with an additional three-years warranty extension in addition to the usual two years.

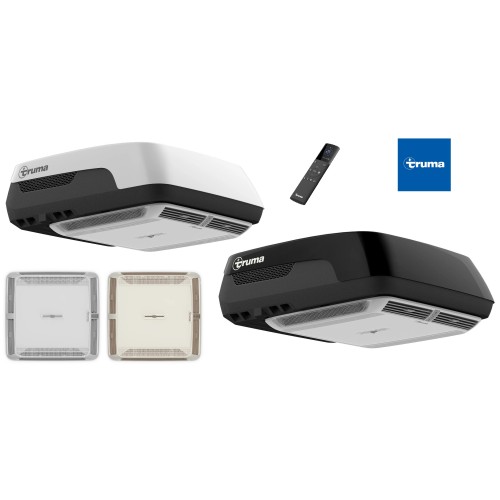

Both the roof air conditioners and the air distributors are available in 2 colours. While the external units are available in black and white, the air distributor comes in a subtle stone or modern cappuccino colour. The premium version of the air distributor also features integrated ambient light and horizontal adjustability. Thanks to its slim design, the vehicle height is largely maintained.

The 2nd generation of Aventa roof air conditioning systems are Made in Germany and therefore stand for the highest quality and reliability.

Technical Details

Cooling power                                                                     1700 W

Cooling mode power consumption (230 V)                    3,3 A

Heating power (heat pump)                                             1200 W

Heating mode power consumption (230 V)*                 1,55 A

Operating voltage                                                               230 V - 240 V. 50 Hz

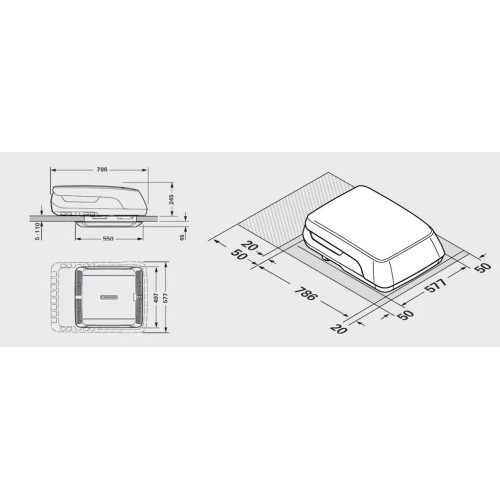

External unit dimensions
(L x W x H)                            786 mm x 577 mm x 245 mm

Air distributor dimensions
(L x W x H)                          550 mm x 497 mm x 45 mm

Weight incl. air distributor                                                23,2 kg

12v DC inverter Kit

The 12v DC inverter kit is wired into the motorhomes/campervans vehicle battery and will only work whilst the engine is running, as the power output of the air conditioner unit would flatten the leisure batteries in a very short period of time (matter of minutes). - This is an aftermarket inverter (Not Truma or Dometic) with switching relay.

* Heating mode is possible if the outside temperature is above approx. 4 °C.

** The compatibility of a CP Plus depends on the software version. Wiring to control panel is at an additional cost
