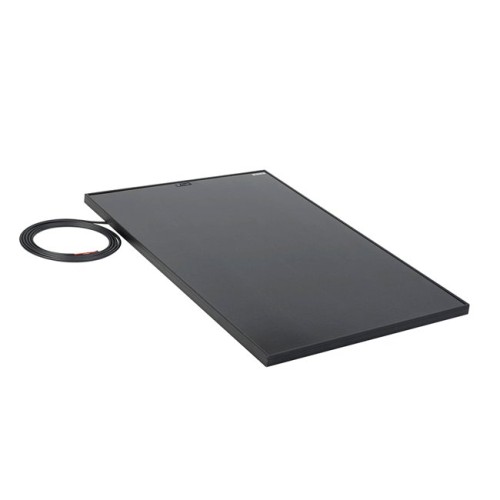

PV Logic Ridged Mono MHD 100watt Solar Panel Kit

Product Code: PV Logic 100 MHD

Available Options

     0 reviews  |  Write a review


When only the best will do!

The ground-breaking solar cell technology used in these Mono High Density (MHD) solar panels replaces the conventional silver electrical ribbon seen on the surface of most solar panels with a passive rear solar cell contact. This means more power in a smaller space. With power ratings from 100w to 200w, our rigid MHD solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes, and boats to creating energy self-sufficiency for off-grid travel.

·         Bespoke brackets deliver the smartest of finishes

·         The sleek black finish is super smart

·         Industry-leading 20 year cell output and 10 year panel build warranties

·         Barcode for complete traceability

·         20% smaller and lighter weight than equivalent solar panels

PV Logic Mono High Density Solar Panels

When you want optimum solar performance with dazzling good looks, PV Logic MHD is the solution. That's thanks to the cell type which is a uniform black colour. Combine this with the all-black frame and aero brackets, and you get the most stunning appearance.

Next generation solar panels

PV Logic MHD Panels are nearly 20% smaller and lower in weight than a conventional solar panel of the same power output. They are also housed in a lower profile frame and, with our custom made MHD aero fitting brackets, the entire assembly has a combined depth of just 48mm so they hug the roof line much more closely than a normal solar panel.

The MHD technology also delivers reduced shading losses and hotspots.

Higher performing solar cell and industry leading warranties

The PV Logic MHD panels are manufactured and quality controlled using the same industry leading methods as the rest of the PV Logic range and are covered by our outstanding 20 year cell output warranty and 10 year panel build warranty.


·         High efficiency crystalline cell for “all weather” charging

·         Water resistant, robust construction for outdoor use.

·         In built diode protects against battery discharge

·         20 year cell performance warranty**

·         Tough and robust

·         10 year module warranty

Technical Specification

Size                                                     1150 x 460 x 35mm

Weight (Kg)                                        6.9

*Watts per day (W)                          600

*Amp hours per day (A)                  31.92

IP (Ingress Protection) Rating         IP65

*Watts and Amp hours/day based on six hours of average

Fitted with Victron MMPT smart-solar regulator to charge leisure batteries, which include AGM, Lead Acid & Lithium


Please note

**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years
