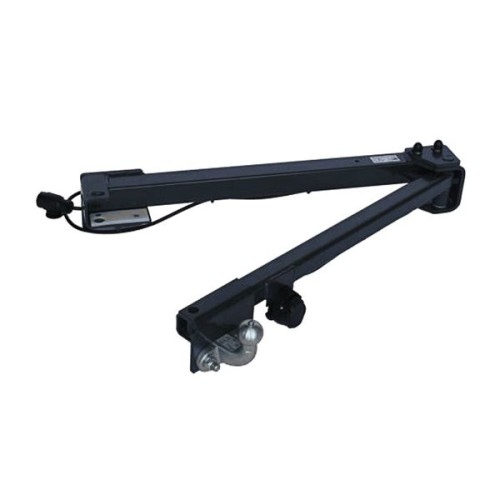

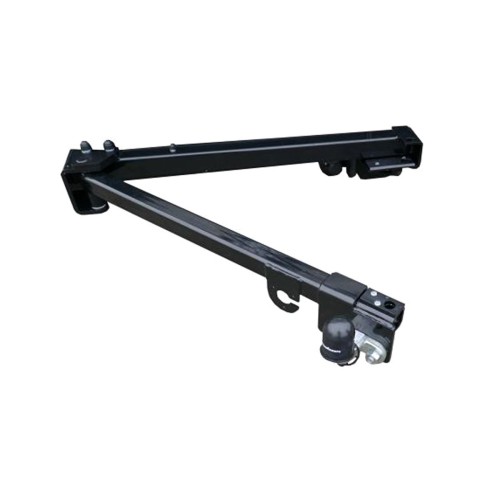

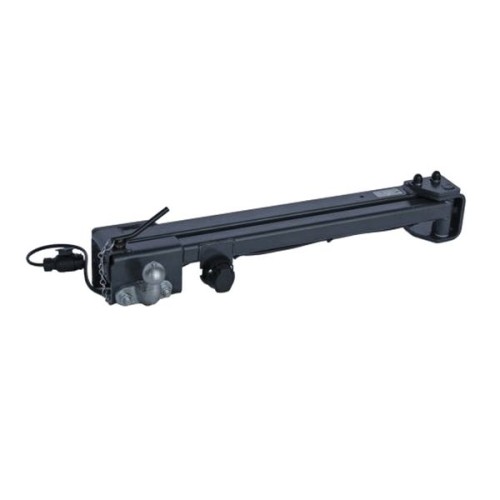

Memo Van-Swing Swivel Module X250

Memo Van-Swing pivoting module with hinge on the left side or right side

Fiat Ducato 2006 onwards

Peugeot Boxer – 2006 onwards

Citroen Relay – 2006 onwards

A known problem with van conversions is finding a suitable bicycle carrier. Bike carriers on the towbar block the rear doors when these must be opened. Many are too heavy for bike racks on the rear doors or hinges and the bikes must be lifted high up.

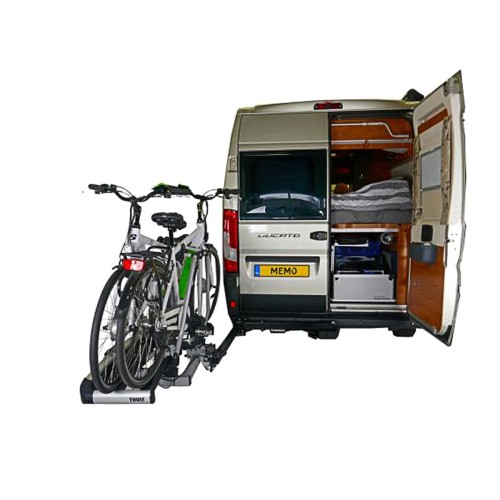

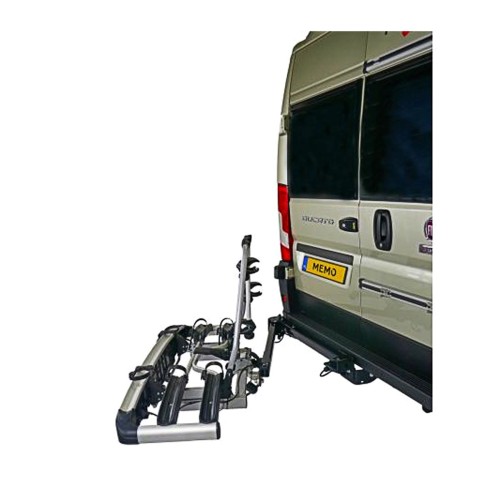

The perfect solution to this is the Van-Swing pivoting module. By fitting the easy pivoting module to an existing fitted towbar, you can use your own bike carrier. You do not have to remove your bicycles or rack when opening the rear doors. The pivoting module gives you the option to swing the bike carrier with bikes open so you can open both doors.

The load capacity of the Van-Swing is 60 kg. This includes the bicycles and the bicycle carrier. That means, if the bicycle carrier weighs 15 kg, the bicycles may still weigh a maximum of 45 kg. Is the combination of bicycles and bicycle carrier too heavy?

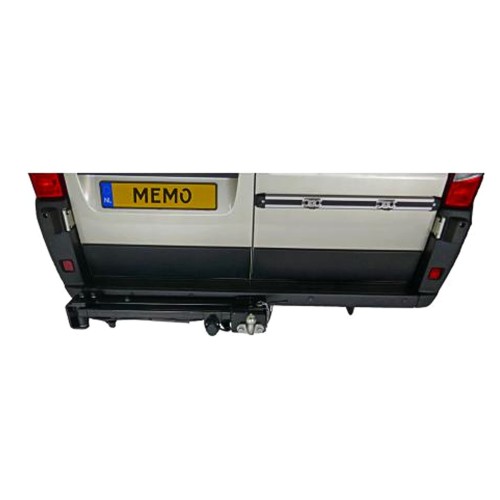

Because the module is fitted to the towbar the bike carrier is at knee height. This is ideal since you will not have to lift up high. Due to the use of existing fitting points, there are no modifications to the vehicle necessary. The module is available for all Ducato models from 2006 onwards. The module can also be mounted to other vehicles and models. The Van-Swing is supplied with an integrated 13 pin socket to extend the existing socket.

Please note: The VAN-Swing is NOT supplied with a bike carrier but is suitable for use with most towball-mounted bike carriers, includes all electrics

The first in its class to be provided with European type approval!

Dimensions

Depth from bumper                       20 cm

Turning circle                                   90 °(with bicycles), 110° (without bicycles)

Weight

Load capacity                                   60 kg (including bike carrier), suitable for nearly any bike carrier

Maximum draw weight                 None, no towing allowed

Materials

Material                                             KTL and powder coated steel

Suitable van models are, for example:

·        Adria: Twin Axess, Twin Supreme, Twin Plus.

·        Bavaria.

·        Burstner: City Car C, City Car Harmony.

·        Carado: Vlow.

·        Challenger: Vany.

·        Chausson: Twist.

·        Citroen: Jumper, Relay.

·        Dreamer: Carlife.

·        Fiat: Ducato.

·        Ford: Nugget, Transit Custom.

·        Font Vendome: Duo, Leader, Plaisance.

·        Globecar: Roadscout, Globescout, Campscout, Globestar.

·        Hobby:  Vantana.

·        Hymercar: Ayers Rock, Yosemite, Yellowstone, Grand Canyon.

·        Knaus: Boxstar, Boxlife, Boxdrive.

·        Malibu: Van, Van Charming.

·        McLouis: Menfys S, Menfys Prestige.

·        Peugeot: Boxer.

·        Pilote: Van.

·        Pössl: Roadcamp, Roadcruiser, Roadstar, 2Win, Summit.

·        Rapido: Van.

·        Sunlight: Cliff.

·        Volkswagen: California.

·        Weinsberg: CaraTour, CaraBus.

·        Wellhouse.

·        Westfalia: Colombus, Club Joker, Amundsen, Sven Hedin, Nugget.
