Memo Van-Star e-cross bike rack

MEMO VAN-STAR E-CROSS: ESPECIALLY FOR VAN CONVERSIONS

·         Access to the rear doors thanks to pivot construction

·         Mounted on the chassis for extra stability

·         Tough look, ideal for E-bikes and mountain bikes

Looking for a bike carrier for your campervan? Then the Memo Van-Star E-Cross is literally a strong choice. This bike carrier is mounted on the chassis of your campervan. Super sturdy. The Van-Star E-Cross can carry up to 75 kg, enough for 2 E-bikes.

Thanks to a smart hinge system, you can also turn the bike carrier away. This keeps the rear doors of your campervan easily accessible.

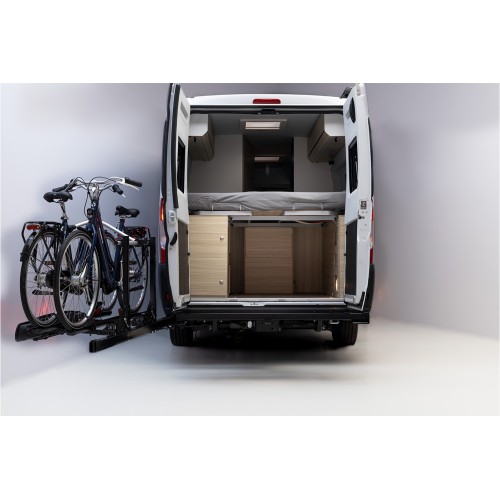

Pivoting

Thanks to an ingenious pivoting construction, you can swing the Van-Star away from the rear doors, even if there are bikes on it. This means you always have easy access to the rear doors and luggage space of your campervan.

Locking pin and closer lip

You use the locking pin to lock the carrier when closed. In 'open' position, the hinge is automatically blocked by a door closer. This prevents unexpected closure due to, for example, a strong wind or sloping ground.

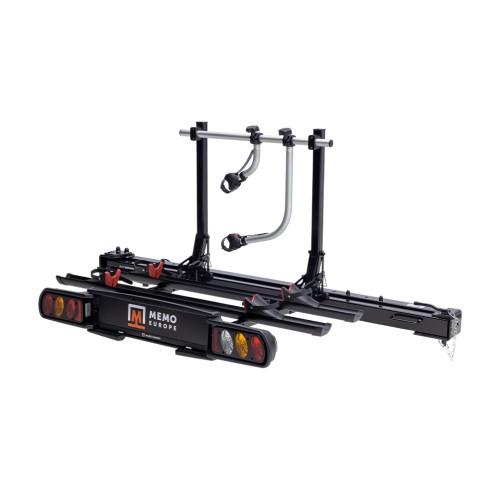

Tough look, ideal for E-bikes and mountain bikes with thicker tires

The Van-Star E-Cross is ideal for transporting E-bikes and mountain bikes with thicker tires. This model has a tough look due to its black plastic light strip and premium bicycle gutters. Prefer a more elegant variant, suitable for E-bikes and city bikes.

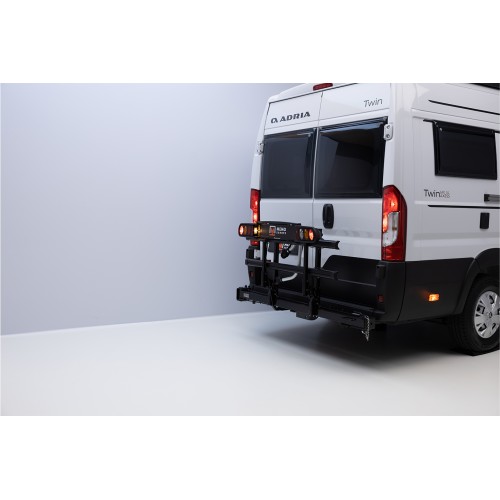

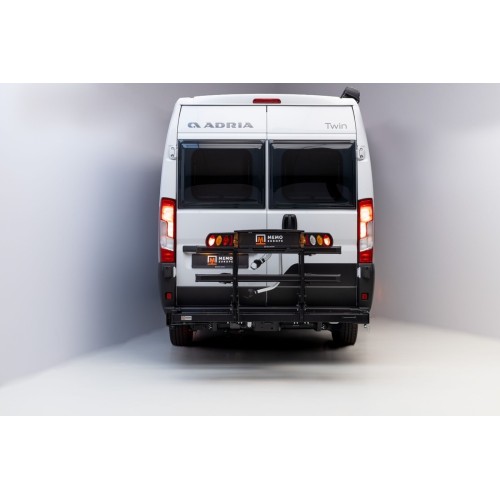

Mounting on the chassis

The Van-Star is mounted directly on the chassis of the campervan. Due to this mounting method, the Van-Star has more carrying capacity than carriers that are mounted on the hinges of the rear door, and it is more stable than a traditional bike carrier on the tow bar.

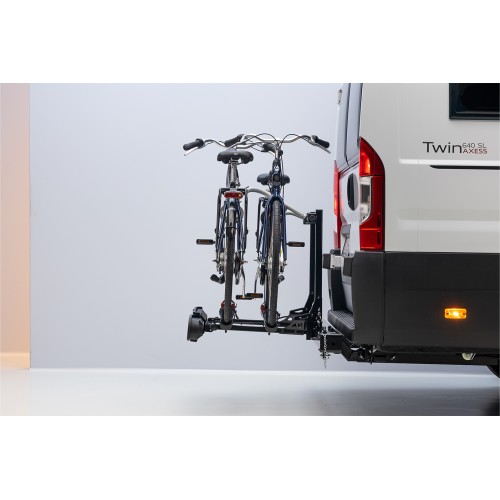

E-bikes at knee height

Because of the mounting on the chassis, your e-bikes are at knee height. So lifting high is no longer necessary.

Fasteners

Cycling shoes and bicycle arms for transporting bikes or E-bikes are included as standard. For safety, we recommend that you always use a lashing strap.

European type approval

The Van-Star E-Cross has a European type approval. You are guaranteed to be safe on the road.

Dimensions

Light bar width                     1100 mm

Rails width                             1280 mm

Depth folded  approx.         27 cm

Depth expanded                   approx. 84 cm

Weight

Payload                     75 kg (suitable for 2 e-bikes or bicycles)

Own weight              45 kg

Materials

Rails and bracket                       Aluminium

Supporting structure                Powder coated steel

Lighting and wiring

Lighting                   Black plastic light bar with halogen lamps

Cabling                    13-pin Jaeger socket
