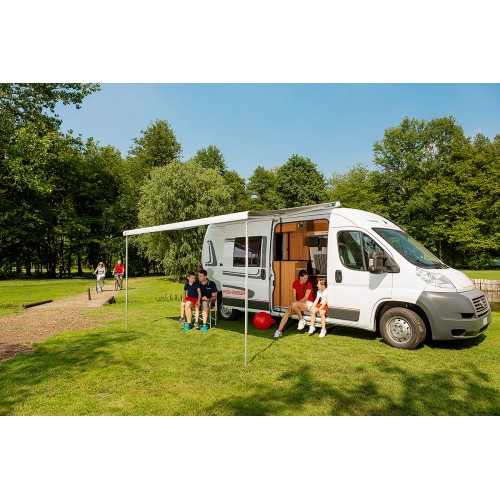

Fiamma F80 Awning - Fiat Ducato/Peugeot Boxer/Citroen Relay
Fiamma F80s, the new, modern and compact awning for roof installation
An awning with an extremely small cross-section to integrate it even better in the contour of the vehicle.
The technical solutions which have been implemented mean a more compact awning protrusion. The introduced innovations, like dual prearrangement as standard equipment for LED lighting on the lead bar and on the case, in addition to three guides on the lead bar, makes the Fiamma F80s the go-to solution for all roof-mounted installations.
Dual LED Predefined position in lead bar + case: housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar
Compact section: case and lead bar are more compact but as strong as ever. The awning has improved aerodynamic performance as a result of having a 20% slimmer cross-section than the Fiamma F65s model
Triple Guide: three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories
Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
Aluminium end caps: new design for the aluminium end caps for maximum strength
Extra-Strong Arms: wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning
Rafter: central tension rafter in aluminium delivered as standard for awnings from 400cm long
Installation brackets: the awning is provided without brackets, simply choose the most suitable one for your vehicle. More than 40 different kits to choose from
Fiat Ducato, Peugeot Boxer, Citroen Relay X244 (2002 to 2006)
MWB (L2 H2)- 290 - 2.9m
LWB (L3 H2) - 340 - 3.4m
Fiat Ducato, Peugeot Boxer, Citroen Relay X250 / X290 (2006 current)
MWB (L2 H2)- 320 - 3.2m
LWB (L3 H2) - 370 - 3.7m
XLWB (L4 H2) - 400 - 4.0m
Please contact us on other variants.
OPERATION: Winch opening and closing. Operation by handle. Electric motor optional.
POSITION: Designed for roof installation with adaptor optional available.
AWNING ENCLOSURE: Optional Privacy Ultra-Light, Privacy Room, front and side panels Blocker & Side.
COLOURS & MATERIALS:
Case: in extra strong extruded aluminium. Very light yet highly resistant external coating in either Polar White, Titanium or Deep Black.
Fabric: Cool and cheerful vinyl canopy. UV resistant, waterproof and washable, with bright colours on both sides. Royal Grey and Royal Blue
Model A B C Weight Shade surface
F80s 290 290 cm 278 cm 200 cm 27.0kg 5,6 m2
F80s 320 320 cm 308 cm 250 cm 29.0kg 7,7 m2
F80s 340 340 cm 328 cm 250 cm 30.0kg 8,2 m2
F80s 370 370 cm 358 cm 250 cm 32.0kg 9,0 m2
F80s 400 400 cm 388 cm 250 cm 34.0kg 9,7 m2
Other vehicles that require alternative adaptor brackets, please contact us for further details.
