F45s Polar White Awning - 1.9m to 4.5m
The innovative and compact awning of Italian design

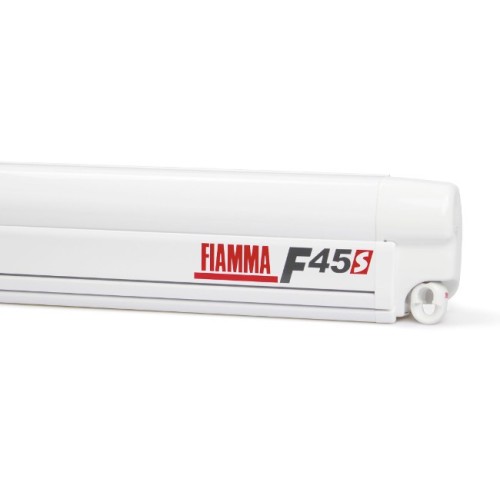

The easy-to-use and simple to install awning which joins todays best technologies, service and quality! Constantly renewed, the F45s awning is compact and functional, making it the best choice for your holidays! When not in use, the F45s takes up little space while snuggly enclosed in its aluminium case. It is sturdy and safe to operate, with an easy-to-hook winch loop.
Advantages & features
• Accessories: a wide range of accessories are available to further increase the comfort
• Installation Brackets: standard adapters (provided with the awning) and more than 90 personalized brackets enable the mounting on special profiles
• LED: many models and LED solutions to illuminate evenings under the awning
• Double Guide: double guide on the lead bar allowing the installation of two front panels
• Perfect Closing: fast and silent opening and closing thanks to the Auto-Lock safety system and perfect closing thanks to Dual Security device
• Presto Fix: adjusting system that enables you to gauge the closing of the lead bar to guarantee a perfect closing over time
• One Way Roll: rolling the fabric only in the correct direction, thanks to Fiamma's patented system
• Dual Shock Absorber: patented shock absorbing bracket with dual bolt system to protect the awning and the vehicle during bad weather
• Extra Strong Arms: strong reinforced articulated arms with double steel cable that allows you to maintain an optimal fabric tension
• Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system

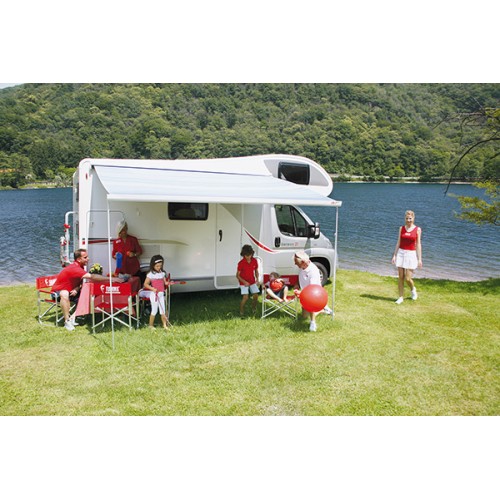

Perfect for any vehicle from large motorhomes to camper vans.
Winch opening and closing. Operation by handle. Electric motor optional.
Designed for wall installation. Delivered with standard installation brackets. Special adapters optional available.
Optional Privacy Ultra-Light, Privacy Room, Privacy Room Light, Blocker and Side.
Colours & Materials
Case: in extra strong extruded aluminium. Very light yet highly resistant external coating in Polar White. Cool and cheerful vinyl canopy. UV resistant, waterproof and washable, with bright colours on both sides.
Colours: R=Royal Grey, Q=Royal Blue, T=Deluxe Grey, N=Blue Ocean, S=Sahara, E=Evergreen, D=Bordeaux
|Description||Fabric colours||Awning length A||Canopy length B||Extension C||Shade surface||Weight|
|F45s 190 - Polar White *||R - T ||185cm||169cm||100cm||1,7m2||11,5kg|
|F45s 230 - Polar White||R - T ||231cm||214cm||150cm||3,2m2||16,5kg|
|F45s 260 - Polar White||R - Q - T - N - S - E - D||263cm||247cm||200cm||4,9m2||19,5kg|
|F45s 300 - Polar White||R - Q - T - N - S - E - D||308cm||292cm||250cm||7,3m2||23kg|
|F45s 350 - Polar White||R - Q - T - N - S - E - D||348cm||331cm||250cm||8,3m2||25kg|
|F45s 400 - Polar White **||R - Q - T - N - S - E - D||398cm||381cm||250cm||9,5m2||27kg|
|F45s 450 - Polar White **||R - Q - T - N - S - E - D||448cm||431cm||250cm||10,8m2||29,5kg|
* Awning for the main door, comes without vertical support legs. ** 1 Tension Rafter made of anodized aluminium included
Some Vehicles require special adaptor brackets for installation, please contact us for further details
