Dometic Freshjet FJX7 2600 Air Conditioner

Dometic FreshJet FJX7 2600

Roof air conditioner, 2600 W, electronic inverter compressor, white or black

This 2200 W roof air conditioner is one of the coolest Dometic have ever built. Its sleek rooftop unit with the exclusive LED light curve immediately catches the eye. Fitted with the latest speed-controlled inverter compressor and heat pump technology, it cools down your vehicle faster, quieter and more efficiently than any other RV air conditioner around. And it will heat as well,

·        Exclusive premium design

·        Available in White or Black

·        Superior cooling performance

·        Whisper-quiet operation

·        Superior energy efficiency

·        Dometic Climate App

Features:

·        Aerodynamically shaped rooftop unit in white or black with eye-catching LED light curve

·        The motorhome, caravan or campervan is cooled down in record time

·        With its variable compressor speed, the FJX7 operates silently while maintaining the desired temperature

·        Reduced power consumption thanks to advanced compressor and heat pump technology

·        Effectively reduces bacteria and odours to keep your RV smelling fresh and clean

·        Conveniently control your roof air conditioner from your smartphone

·        Quiet and gentle air conditioner start-up even on campsites with low fuse protection

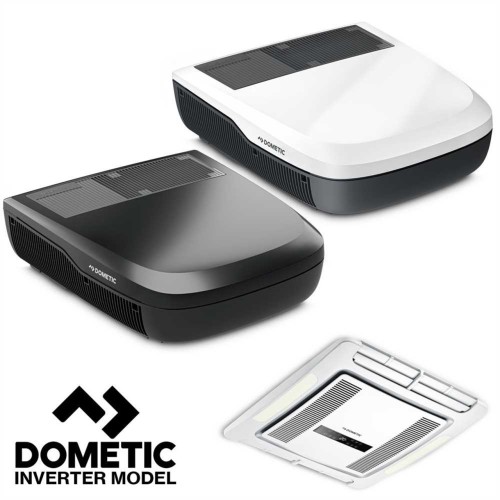

Dometic Air Distribution Box ADBD

Air distribution box, electronic controls, LED light

This elegant air distribution unit blends in nicely with modern motorhome interiors. It quietly and efficiently moves the air in two directions, front and back. Simply use the flush-mounted touch control display to set the desired temperature and blower speed – and enjoy unforgettable moments in your home away from home. The integrated LEDs radiate a warm and soft ambient light.

•            Optimised airflow

•            Intuitive touch control

•            CleanAir technology

•            Adjustable outlet vents

•            Integrated lighting

•            Reusable dust filter

Dream addition to complement digital FJX models

If you have decided on buying one of Dometic’s electronic rooftop air conditioners, this elegant air distribution box. The low-profile unit generates a refreshing airflow to the front and back – efficiently and amazingly quietly. The nicely integrated touch control panel allows intuitive control of the temperature and blower level. Warm white ambience lights create a cosy atmosphere in the cabin. Dometic CleanAir technology ensures you can always breathe fresh and healthy air. The Dometic FreshJet FJX ADBD air distribution box fits all digital FreshJet FJX air conditioners (electronic FJX4 models and all FJX7 models).

Dometic CleanAir air purifier

The new air purification system uses advanced bipolar ionizer technology to keep your motorhome smelling fresh and clean while greatly reducing allergens, viruses, bacteria and pollutants. Ionizers purify air through several methods. Firstly, they create positive and negative ions to help reduce pathogens, odours, and mould. Bacteria and virus cells are robbed of their life-sustaining hydrogen, reducing their number. Secondly, odours are reduced when they oxidise on contact with the charged ions. Last but not least, the positive and negative ions attach to the particles in the air. Their attractive forces make the particles big­gre. This in turn allows the standard dust filter of your air conditioning system to remove more particles from the air.

Benefits of the inverter compressor

Compared to the compressors used in conventional A/C systems, the inverter compressor of the FreshJet FJX7 series is significantly more quiet, efficient and energy-saving. Controlled by smart electronics, this state-of-the-art compressor type does not have the typical ON/OFF cycles. The compressor speed automatically adapts to the cooling requirements. When the preset temperature has been reached, the inverter compressor won’t cut off. Instead, it continues running superbly quietly at a low speed to keep the temperature on a fairly constant level. A conventional A/C compressor, by contrast, switches on and off over and over again. This causes noise and consumes extra energy.

Specifications FJX7 2200:

External unit dimensions (d x h x w) [mm]                             752 x 225 x 702

Air distribution box dimensions (d x h x w) [mm]                  579 x 48 x 418

Net weight, [kg]                                                                           Unit 31 + ADBD 3.9 = 34.9kg

Input voltage (AC), [V]                                                                 220-240

Input frequency, [Hz]                                                                  50/60

Cooling capacity (ISO 5151), [W]                                               2600

Heating capacity (ISO 5151), [W]                                               2000

12v DC inverter Kit

The 12v DC inverter kit is wired into the motorhomes/campervans vehicle battery and will only work whilst the engine is running, as the power output of the air conditioner unit would flatten the leisure batteries in a very short period of time (matter of minutes). - This is an aftermarket inverter (Not Dometic) with switching relay.
