Truma MonoControl CS

Truma MonoControl CS

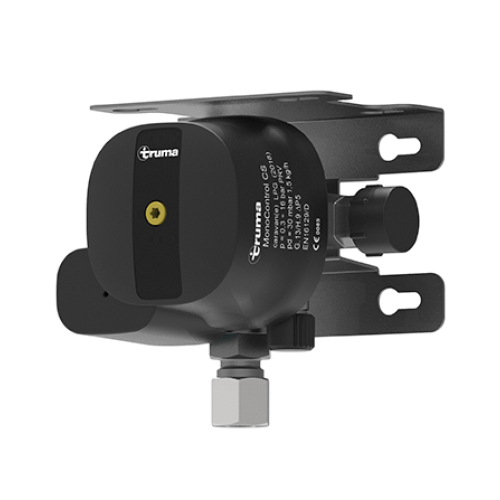

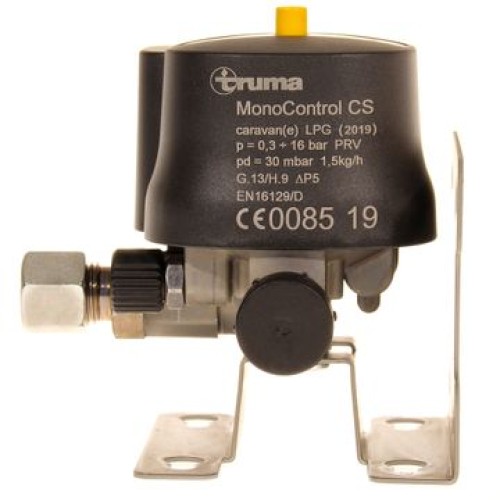

Gas regulator with crash sensor for one cylinder

The safety gas pressure regulator with crash sensor for one gas cylinder cuts off the gas supply immediately if you are involved in an accident. This prevents gas escaping in the event of damage to the gas installation.

·        Crash sensor is easy to reset

·        Available in 30 mbar

·        For vertical or horizontal installation

·        H: 106 mm x W: 101 mm x D: 102 mm

·        Weight: 500 g

Additional benefits of the MonoControl CS

·        For vertical and horizontal installation

·        Gas system flow rate does not have to be calculated

·        Permanently dimensioned for maximum consumption of 1.5 kg/h: consumers do not have to be calculated

·        Current-free: no additional current consumption in stationary applications; the caravan does not need a permanent positive from the towing vehicle

·        Suitable for use throughout Europe (country-specific high-pressure hoses)

·        No need for intervention in the tested and approved gas system

·        Compatible with existing Truma original accessories

·        Also available for gas tanks

·        Integrated test point

·        Approved for use in commercial applications in accordance with UVV BGV D34 (Germany)

Type of gas                        Liquid gas (propane/butane)

Inlet pressure                   0.3 – 16 bar

Outlet pressure                30 mbar

Regulator capacity          1.5 kg/h

Inlet connection              M20 x 1.5 (G.13)

Outlet connection           8 mm or 10 mm (H.9)

Crash sensor activation value     3.5 g +/- 0.5 g
