TESA AutoLift 12v Motorhome Levelling Systems

Product Code: Tesa 12v Autolift
  £3,995.00

Available Options

     0 reviews  |  Write a review

TESA AutoLift 12v Motorhome Levelling Systems

The only electromechanical levelling system in Europe, 100% MADE IN ITALY, AutoLift System is the great alternative to expensive and heavy hydraulic actuators.

A sophisticated control unit controls the four legs, that with the high lowering speed added to the considerable thrust force make this product the greatest expression of the products developed and manufactured by Tesa.

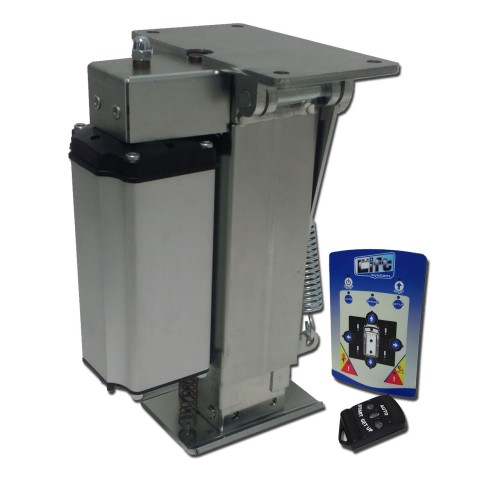

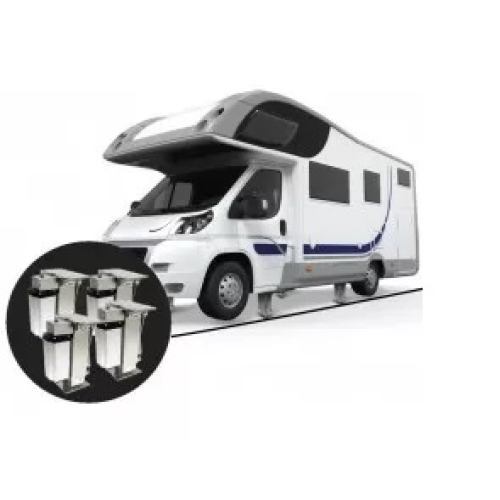

AutoLift System is a self-levelling system for a motorhome, campervan or mobile vehicles, the kit includes four electric stabilizers with thrust force of 2500 kg for each actuator and extension of 160 mm, pre-wired control unit, internal keyboard and wireless remote control

If you've thought about having an automatic levelling system fitted to your motorhome but have been put off by the cost, take a look at the AutoLift from TESA. The TESA AutoLift is different from any other motorhome levelling system in that it uses electro-mechanical jacks instead of hydraulics. The advantages of this approach include:

·         Lighter weight

·         No maintenance

·         No possibility of fluid loss

In addition, the AutoLift system is considerably less expensive than hydraulic systems.

The AutoLift System is widely used in Italy, Germany, France, Holland and Denmark as well as other European countries. It's easy to use, reliable and effective and it can be fitted to most motorhomes including panel vans. Installation kits are available for:

·         Ducato / Boxer / Relay

·         Mercedes Sprinter

·         Iveco

·         Ford Transit

·         Renault Master

If your vehicle is not listed, please enquire.

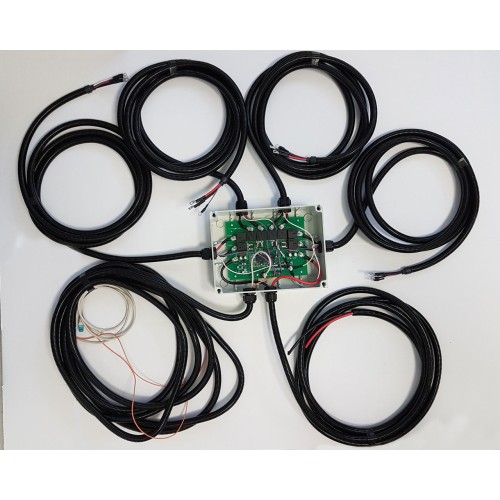

The AutoLift system is driven by an electronic control unit for self-levelling of your vehicle, the actuators can also be controlled manually but is done so in pairs i.e. front pair, back pair, left or right side.

The control unit has built in safety features to prevent accidental descent of the actuators whilst the vehicle is in motion and to prevent driving with them down.

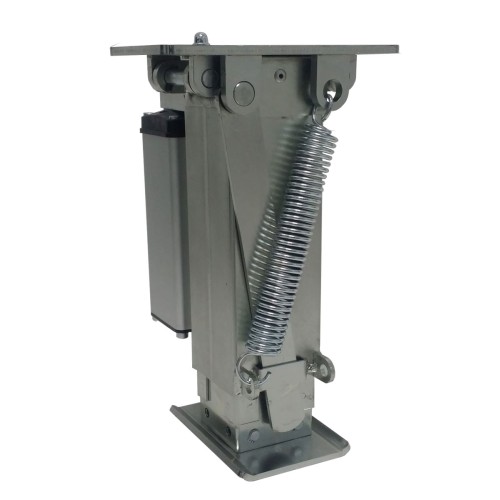

When not in use the actuators fold up horizontally under the motorhomes chassis which helps reduce the overall dimensions of the unit.

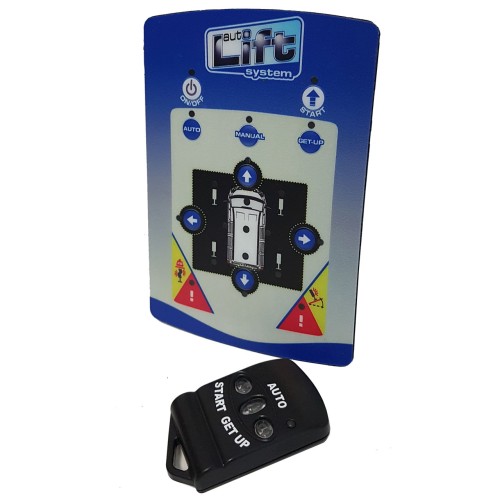

 The system can be either used via the in-vehicle control or via remote

SPECIFICATIONS

Voltage:                               12V

Amp Rating:                        12A

Thrust force:                      2500 kg real

Maximum load:                 5000 kg

Lowering speed                5 mm / sec

Operating temperature: -30°C to 50°C

Nett weight:                       48 kg

Warranty period:             3
