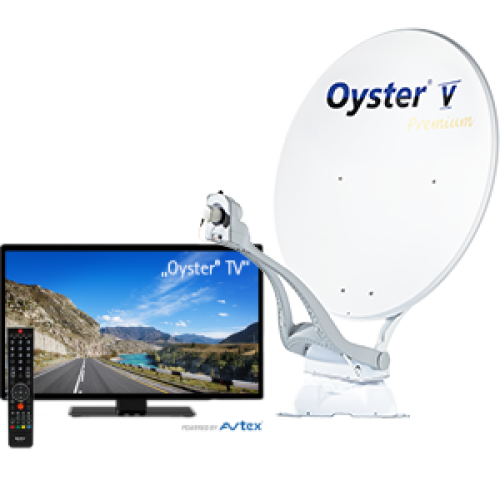

Oyster V Premium TV Systems
The perfect integration of satellite antenna and TV set We have committed ourselves to supply products that not only fulfill the demands of discriminating customers in terms of quality, but also when it comes to easy and hassle-free operation.
The latest feature of our premium satellite system is also the cleverest one! Now you can operate the Oyster ® TV set and the satellite antenna using the same new system-dedicated remote control.
At the touch of a button, the satellite antenna unfolds automatically, searches the satellite required and, within a few seconds, supplies the channel you have selected on your TV display in optimal HD quality.
And you can listen to your favourite radio station in optimal sound quality even when traveling abroad.The LED panel displays show crystal-clear images with radiant colours.
The high contrast ratio ensures top-quality image quality even in recreational vehicles, vans or camper trailers. The integrated HD tuner is compatible with DVB-S, DVBS2, DVB-T and DVB-T2.
Using the USB
ports, you can record ongoing programmes on an external hard disk for
time-shifted playback. Of course, you can always record your favourite
programme.

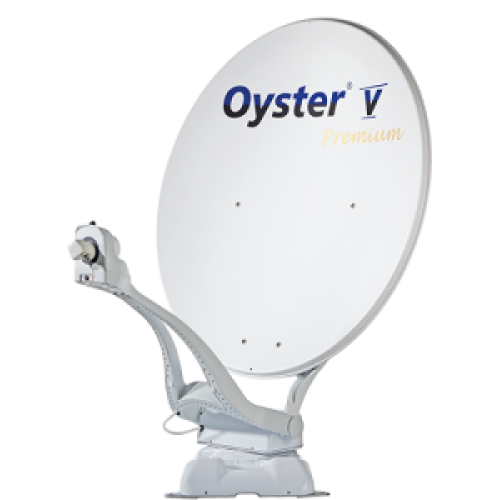

Oyster V
Oyster® V
A giant
leap forward
The Oyster® V features several ground-breaking innovations. We are
taking mobile antenna technology to a new dimension. Tune in!
Don't search. Find!
The Oyster® V knows exactly where the satellites are positioned – at any time. Tedious full-range scans are no longer necessary. The system swiftly aims itself to the satellite. This technological edge is the result of three interacting components: GPS, 3D compass and inclination sensor. The GPS unit identifies the position, the 3D compass identifies the direction which your vehicle (and the antenna, accordingly) is oriented to, and the inclination sensor exactly determines the vehicle's inclination, causing the antenna to make an adjustment. Especially the effect of the vehicle inclination is often underestimated. Even a few degrees may already affect reception significantly. Much more than the vehicle's difference in elevation between a valley and a mountain top.
Convenience at the touch of a button...
... and the satellite antenna starts the fully automatic search, identifies after a few seconds the satellites and transmits the requested program. Wide reception range and brilliant image definition combined with fully digital satellite aiming ensure the reception of your favourite programs in remote locations such as the Canary Islands or Greece.
Tackling constant change
Unexpected changes in the technical characteristics of satellite signals can be quite annoying, especially when you are traveling across Europe, and all of a sudden everything goes bust. Often, an update is the last resort. Even though our engineers can create an update in a jiffy, it must still be loaded into your system.
Your Oyster® Vis updated online via your smartphone (or, alternatively, via a USB stick).
This is more than just another gadget or gimmick. The update is sent directly to your mobile device and can then be loaded onto to your system. For your Oyster® V, you can download a free app that not only allows you to update your satellite system but also offers many more valuable features. For example, we will notify you immediately whenever we detect a change in the satellite characteristics. You will learn the cause of the malfunction and will receive an update as soon as available. Via the app, your smartphone is connected to the controller of the Oyster® V . Technical problems can usually be diagnosed with the Oyster® app. These data can then be sent to the customer service.
Solid as a rock!
The Oyster® V 's external unit weighs only about 11 kg. Despite the weight reduction, it is even more solid than its predecessors. Because stability makes the difference. Not only in terms of the proverbial "longevity of the Oyster® V“, but especially when it comes to flawless operation. Manufacturers trying to cut corners run the risk of producing an instable antenna system that is susceptible to wind. Image interferences are then inevitable. The stability of the Oyster® V is the result of cleverly applied engineering skills and state-of-the-art, high-quality materials like the ones used in motor sports. The single-piece dish arm is made of ultra-light-weight magnesium. And yet, it is extremely rugged and torsionally rigid. The feed arm is made from glass-fibre-reinforced plastic, with carefully calculated internal webs providing ultimate torsional stiffness. In plain words: It won't flex – ever. In addition, this meticulously crafted component provides the space needed for wiring, inclination sensor, compass and GPS sensory system. If fitted with the SKEW option, then this part is also integrated in the feed arm for protection against the elements.
No need to re-ivent the wheel
In tens of thousands of Oyster® systems, the rotary head technology has proven its value. We have refined it for the Oyster® V, but the principle remains unchanged: Only the head rotates while the rest of the antenna body remains fixed. This means: Less weight to move, resulting in reduced energy consumption, less mechanical stress and a smaller space requirement. Also, the pivot point is elevated. So even when covered under a layer of snow, the Oyster® V can move freely.
Oyster® = quality
The combination of simple and
solid technology with the latest electronics makes the difference. ten Haaft
products contain no consumer-grade components susceptible to failure. We rely
on tried-and-tested heavy-duty material. The high standards of the automotive
industry are our benchmark. For resistance against vibration, mechanical shock
and extreme temperatures, they prescribe extremely strict requirements. We
exceed these regularly.
This is why you can take our 3-year manufacturer's warranty for granted.
3 years warranty and reliable service
Specification:
Dish dimensions: |
Ø 85 cm |
Height: |
~ 17 cm |
Weight of top unit: |
~ 11 kg |
Weight of installation material and equipment: |
~ 3 kg |
Fully automatic aiming: |
✓ |
Supply Voltage (Volt): |
✓ |
Max. power consumption during satellite-tracking: |
8 A |
Power consumption during receiving: |
ca. 150 mA |
Power consumption standby (operation): |
15 mA / < 1 mA |

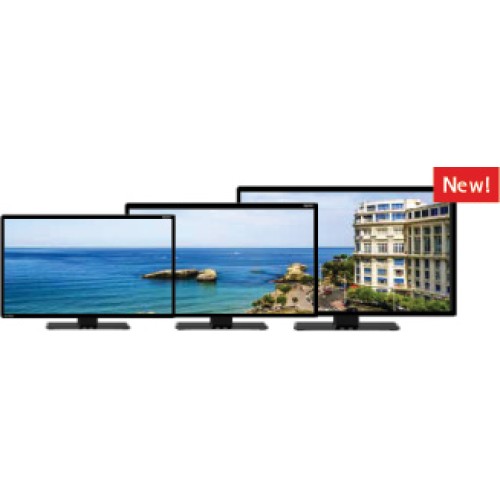

Avtex TV
19“ | 21.5“ | 24“ | |
Display sizes | 47 cm | 55 cm | 61 cm |
Dimensions excluding base | 43.7 x 26.1 x 4.6 cm | 50.2 x 29.9 x 4.6 cm | 56.3 x 33.0 x 4.6 cm |
Weight (excluding base) | 2.5 kg | 3.1 kg | 3.5 kg |
Resolution (pixel) | 1366 x 768 HD Ready | 1920 x 1080 Full HD | 1920 x 1080 Full HD |
Connections | HDMI / USB 2.0 / CI+ | HDMI / USB 2.0 / CI+ | HDMI / USB 2.0 / CI+ |
EU energy efficiency category | B | B | B |
• High-end device - with ultra-flat design
• LED TV - fascinating image quality in HD resolution
• HD-tuner - for DVB-S, DVB-S2, DVB-T, DVB-T2
• Connection of external devices - via USB 2.0 and HDMI ports
• Universal installation - thanks to VESA standard mount
• System remote control - available for Oyster® Premium, Cytrac® DX Premium, (combination of „Oyster® TV“ set and satellite antenna)
• EPG - Electronic Programme Guide and timer programming
• Module slot - CI / CI+ slot
• Mains switch - On / Off
