Motorhome WiFi 4G Sharkfin Roof Antenna & Huawei Router

Product Code: Sharkfin 4G
  £299.95

Available Options

     0 reviews  |  Write a review

Motorhome Wi-Fi 4G Sharkfin Built in WiFi

Perfect for Low Profile Campervans and VW Conversions

Benefits: The 4G Sharkfin Roof Antenna can give you a significant improvement over the performance of your mobile phone. Best for an “On The Move” connection, as and when you need it without having to rely on campsites. The Sharkfin 4G Antenna is compact, discreet and has a low visual impact as well as being ground-plane independent.

What’s Included:

  • 4G MiMo Sharkfin Roof Antenna (1.85inch / 47mm High)
  • Max Roof Thickness 8mm
  • 2 x 5m SMA Low Loss Extension Cables (if required, shorter cables available on request)
  • Quick Mount Magnetic MiFi Docking / Charging Station, 12v cable and adhesive rear mounting
  • 4G MiFi Device – Fully unlocked with additional documentation
  • Three ‘Zero Credit’ SIM Card

At just 45mm high (1.85”) it is the leading 4G antenna in discreet automotive styling. The underside consists of a non-permeable 3M adhesive foam pad and an adjustable threaded internal brace, through which the cables travel, for a totally weatherproof installation.

The installation requires an 18mm hole to be drilled through the roof.

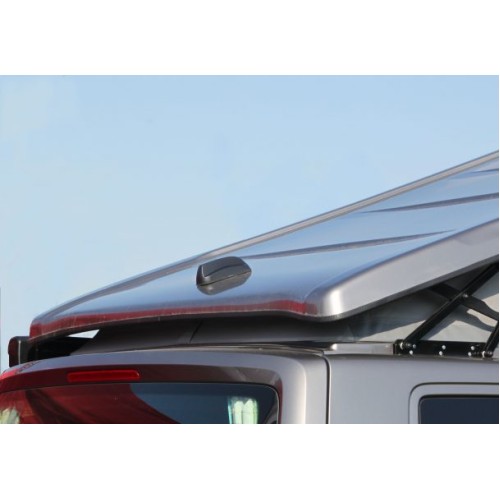

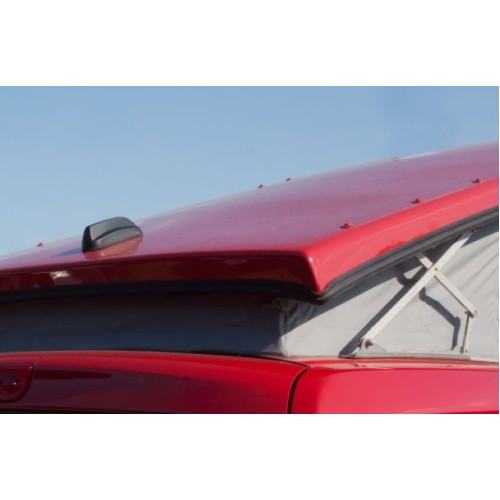

Ideally the antenna should be fitted above a locker or wardrobe, in which the Quick Mount and Mifi are mounted, making an invisible installation of your Internet solution. You can also divert the cables at a right angle to hide the cables under the headlining.

Our Quick Mount makes it easy to secure your MiFi whilst still being able to view the LCD display. The Quick Mount allows you to hard wire your system straight into your 12v supply. As the 4G MiFi is factory unlocked, you can choose any network operator of your choice. We provide you with a Three PAYG nil credit card to get you up and running.

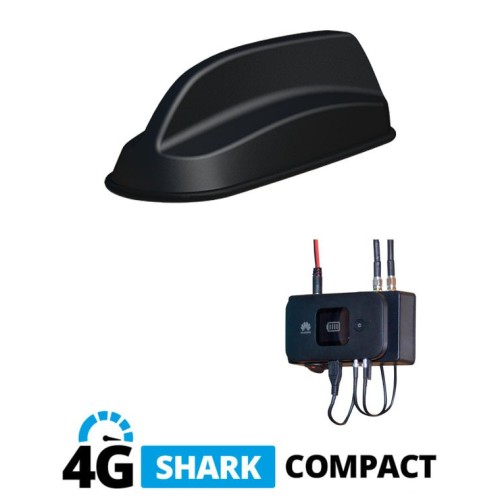

4G Sharkfin Roof Mount Antenna

Our 4G Sharkfin Roof Mount Antenna has been designed for low line campervans, VW conversions and commercial vehicle use and can be fitted to roofs up to 8mm thick.

Our 4G MIMO antenna is a dual polarised antenna housing two powerful passive antenna elements given the required standard for 4G LTE MIMO (Multiple Input, Multiple Output). Not only does the antenna cover all the European 4G LTE wavebands, but is fully backwards compatible to 3G and 2G signals as and when they are available.

The antenna maintains a high level of performance even when mounted on a non-metallic surface.

Antenna Technical Specifications

  • MIMO antenna configuration
  • Works with 3G & 4G Devices, Frequencies 698-960 / 1700-3800
  • Omnidirectional radiation
  • Operational Bands LTE / Cellular
  • Height 1.85” (47mm)
  • Diameter/Length 6.77” (172mm) x 2.4″ (61mm)
  • Max Roof Thickness 8mm
  • Required mounting hole size (mm) 18 (0.71”)
  • 698-960MHz – 2.3dBi
  • 1700-2700MHz – 5dBi
  • Cable length 5m
  • SMA cables
  • Does not require a metallic ground plate
  • Coated with High Impact UV

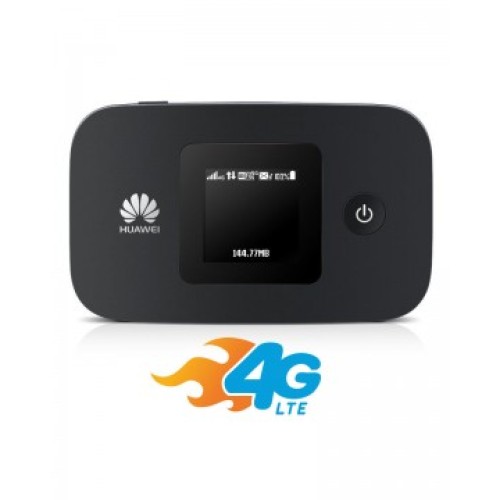

4G Huawei MiFi Specifications:

  • Fully factory unlocked to all mobile networks
  • Fast Boot
  • Width 96.8mm, Height 58mm, Depth 13.5mm
  • Weight 82g (including the battery)
  • Communication System: LTE FDD/LTE TDD/UMTS/HSUPA/HSPA+GSM/GPRS/EDGESpeed: LTE FDD 150Mbps/LTE TDD 112Mbps
  • Display: 1.45” TFT LCD
  • Battery: 1500mAh, Maximum working time: 8 hours
  • Maximum standby time: 300 hours while Wi-Fi is off
  • 2 External (TS9) MIMO antenna connectors for optional antennas
  • Wi-Fi Connection Number: Up to 10 simultaneous users/devices
  • Free optimised App
