Maxview Target Satellite TV System

Product Code: Maxview Target Satellite TV System
  £1,499.95

Available Options

     0 reviews  |  Write a review

PRODUCT SUMMARY

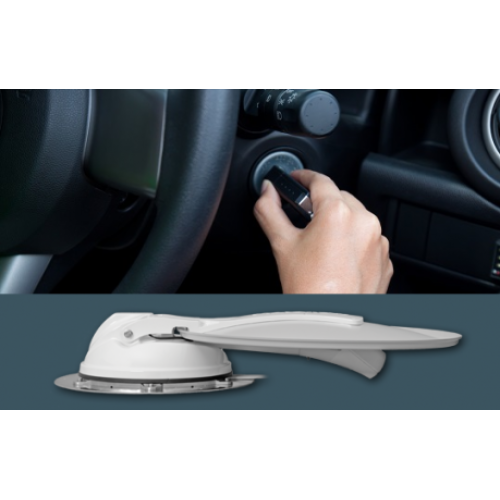

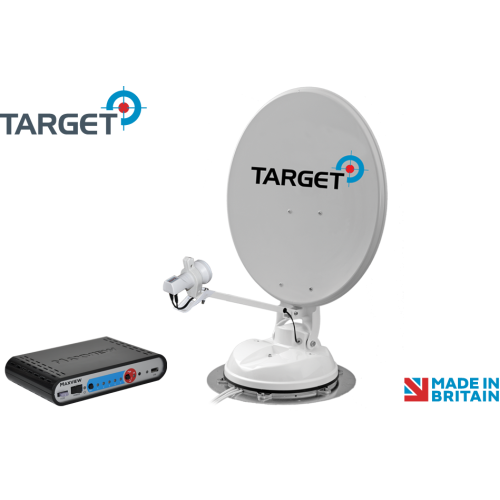

The Maxview Target is a fully automatic roof mounted satellite system designed to receive satellite TV and radio from the UK and Europe at the press of a button, using a wired control box.

FEATURES & SPECIFICATIONS

  • Performance and coverage better than any Dome Satellite System
  • Single, Twin, Quad, SKY Q LNB variants available (For PVR's, SKY+ or 2 receivers, or SKY Q)
  • Enhanced gearbox design for increased positional accuracy and reliability

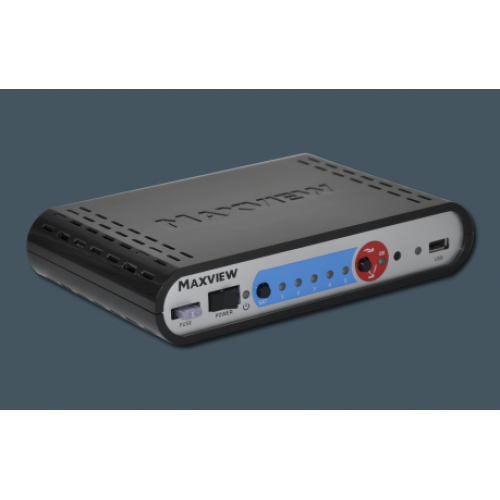

  • Mounting brackets included to fix Control Box conveniently inside a cupboard
  • Easy adjust manual skew system or optional Auto-skew
  • Designed and tested for outdoor use
  • High quality, durable and robust construction
  • Designed and manufactured in the UK
  • 3 year guarantee




AUTOMATIC SKEW FEATURES

              Maximises Signal Performance using GPS - Allows you to watch TV on the fringe areas of the satellite footprint

              Fully Enclosed Housing - Protects the LNB and moving parts, without any signal degradation

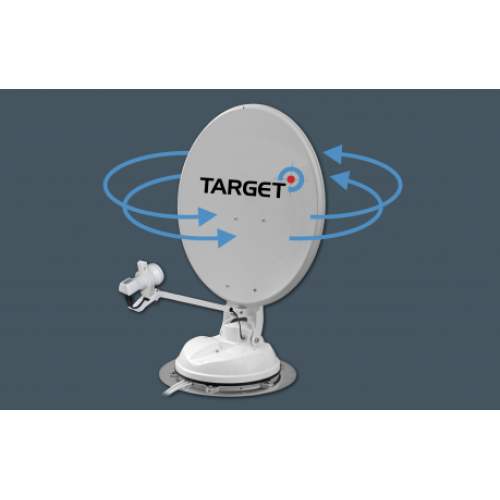

              Fully Automatic Positioning - Skew is set simultaneously to satellite search process, minimising satellite acquisition time and requiring no additional input from the user.

              GPS Memory Storage - Accelerated adjustment in next use as GPS automatically stores last location


The Target SKY Q™ variant is fitted with a Wide Band 10.41 GHz LNB allowing the system to be used with SKY Q™ Receivers only.


Application:

Mobile touring vehicles such as motorhomes and caravans

Compatibility:

Transmissions from satellites worldwide (UK/European satellites as standard).

Compatible with all SD/HD free-to-air satellite receivers including most SKY™ and SKY Q™ receivers

Pre Programmed Satellites:

Astra 1, Astra 2, Astra 3, Hotbird and Thor

(additional satellite packs available to download)

Operation:

Automatic

Mount Type:

Roof mount

Skew Adjustment:

Manual -30° to +30° optional Auto-skew (Not on Quad LNB)

Installation:

Professional install recommended

Coaxial Cable Length:

5m

Installation Cable Length:

5m

Power Input:

12V / 5A

Standby Power Consumption:

0.35A

Search Power Consumption:

Up to 3A

Elevation Range:

10 to 50° (EU Variant)

Azimuth Range:

360°

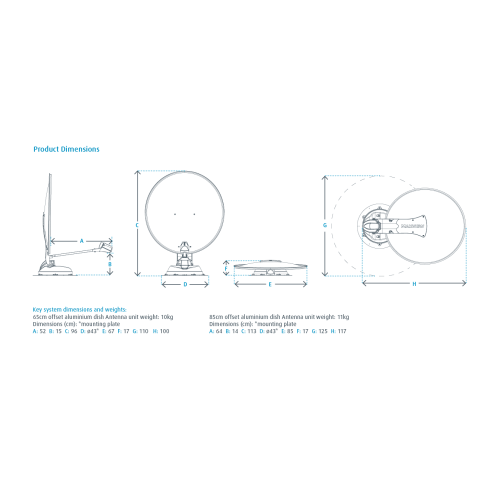

Weight:

65cm variants: 12 kg

85cm variants: 13 kg
