LED Day Running Lights kit (DRL) - Universal A Class Motorhomes

Product Code: DRL-ACLASS

Available Options

     0 reviews  |  Write a review

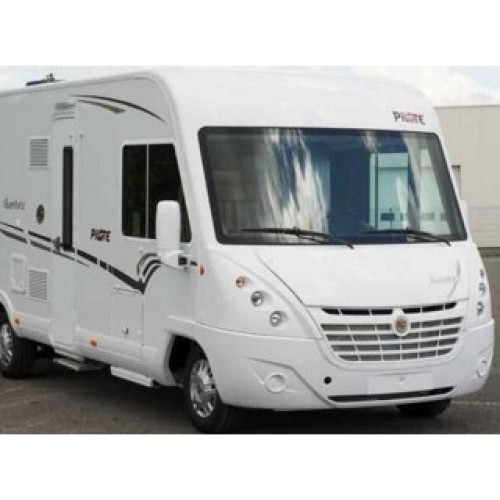

LED Day Running Lights Kit for A-Class Motorhomes

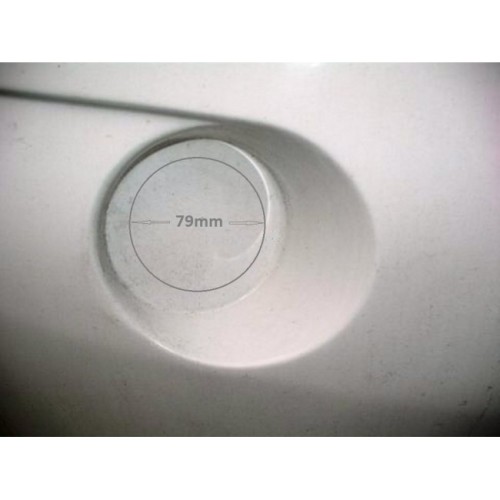

This is a set of universal Day Running Lamps for an A Class type Motorhomes or similar with the fog lamp moulding in the bumper. They require a cut out of 79mm and the overall dimension of the lamp including the outer ring is 90mm. Please check these dimensions and confirm that your bumper has only a single skin with access to fit the lamp brackets at the back as shown in the picture of the lamp assembly.

The full kit contains:

  • Pair of Day Running Lamps
  • Controller Module
  • Wiring Loom
  • Brackets and fasteners
  • Universal fitting instructions

The lamps have a cast alloy body with a vent valve to regulate temperature and pressure inside the lens. They are fitted with four one watt LED bulbs which have a very high brightness of 6000k, which is the same technology found in many high end manufacturer's vehicles. The lamps are also E marked and meet the current ECE R87 regulations.

The lights will switch on and off with the ignition. The controller can be connected so that the lights will dim or go out with the headlamps depending on customer preference. Our new controller is fully compatible with Motorhome wiring systems and the lamps will not be triggered whilst charging on solar or 240v mains hook up.

These quality lamps are designed to fit into the bottom aperture moulding or flat surface in the bumper.

They come with an easy fit wiring loom with only three simple connections required under the bonnet - no complicated under the dash dismantling. They are 100% compatible with the vehicle's canbus wiring system.
