Indel B - Plein-Aircon 12V

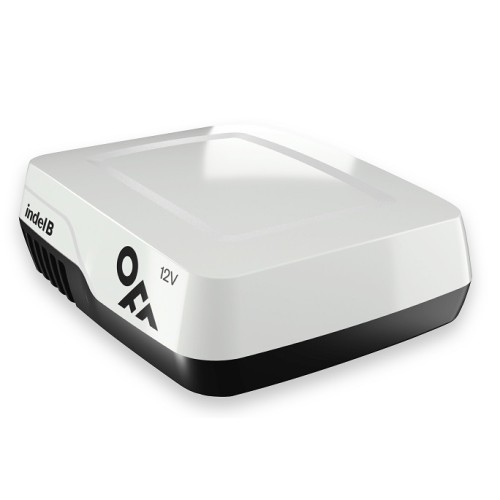

Indel B Plein-Aircon 12V roof-mounted air conditioning

Indel B Plein-Aircon 12V roof-mounted air conditioning unit designed for installation on campervans up to six meters in length, equipped with a 12V DC power supply.

The roof-top unit includes all the necessary components for the air conditioning function (the condenser, the evaporator, the hermetic compressor and the fans). It then MUST be combined with an air diffuser which is installed inside the vehicle against the roof.

Key Features

·        Powered by an auxiliary battery

·        Can be paired with air distribution only, or combined air distribution and mood lighting diffusers

·        Improved efficiency and user-friendliness

·        Can be controlled via a smartphone app with dual connectivity options through Bluetooth and Wi-Fi

·        Incorporates Indel B's innovative Pre-Adaptive technology (Smart mode)

One of the notable features of the new Plein-Aircon models is their connectivity. They can be controlled via a smartphone app with dual connectivity via Bluetooth and Wi-Fi.

This app offers various functionalities, including manual operation, as well as Indel B's innovative Pre-Adaptive technology (Smart mode).

This technology adapts the operation of the air conditioner based on the user's habits and optimises performance according to current weather conditions or predicted conditions at a set future destination. Additionally, the app provides diagnostic and service information.

The unit is available in 3 kit types:

·        Base Kit- 12V only. (12v) Air conditioner connected to the service (leisure) battery. The air conditioner can work if the vehicle is either stationary or moving. The air conditioner will draw 42amps so when in maximum operation this will drain the service (leisure) battery and shorten battery duration whilst wild camping.

·        Comfort Kit- 12V & 240v mains hook up (12v & Mains hook-up) Air conditioner connected to the service (leisure) battery and to the mains (x2 Victron Mains chargers). The air conditioner can work if the vehicle is either stationary or moving. Depending on the vehicle system this could still drain the service (leisure) battery whilst moving and will also drain whist wild camping.

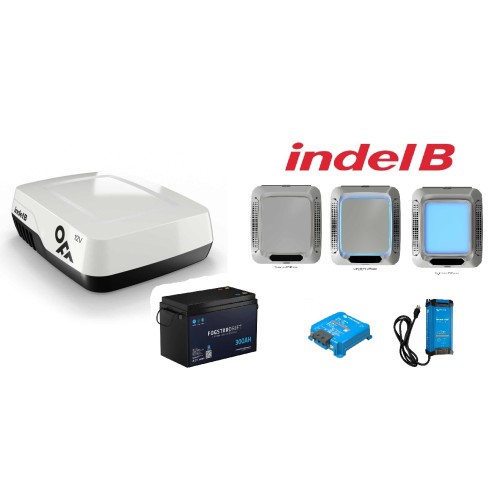

·        Ultimate Kit - 12V & 240v mains hook-up with Lithium battery system. (Standalone Lithium System) Air conditioner connected to its own Lithium battery. The air conditioner can work if the vehicle is either stationary or moving. This includes 300ah Fogstar Lithium battery, Victron B2B charger and x2 Mains chargers. This option will leave the Service (leisure) battery separate to stop any draining whilst wild camping, leaving the air conditioner as a separate system.

Diffuser options are as follows:

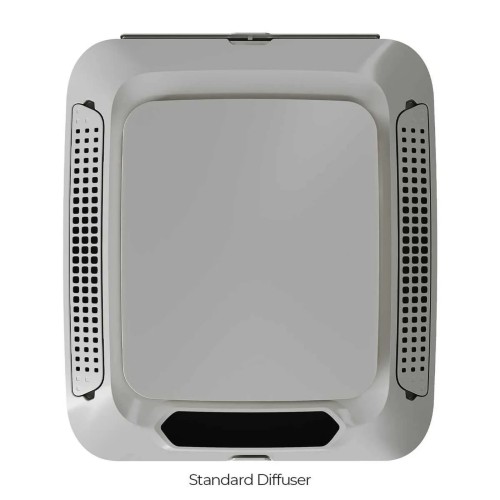

·        Plein-Aircon Standard model: This diffuser features adjustable vents without mood lighting.

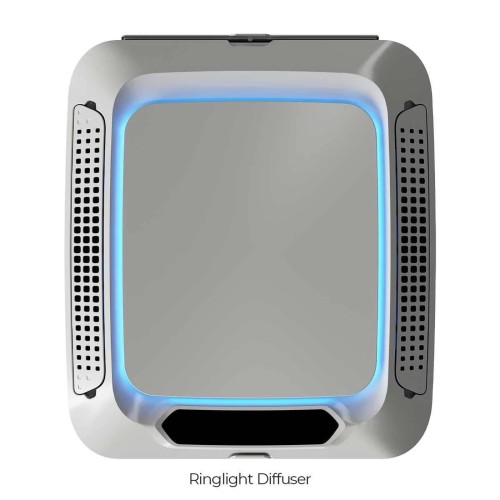

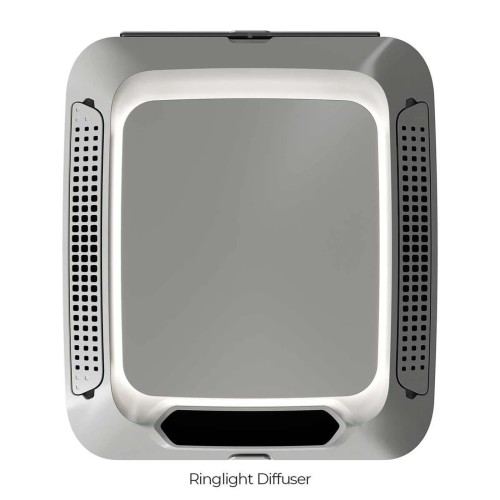

·        Plein-Aircon Ringlight model: This diffuser features a customisable panel with white or blue LED perimeter lighting. This panel can also be customised with different finishes, fabrics, and stickers to integrate the air conditioner with the vehicle's interior style.

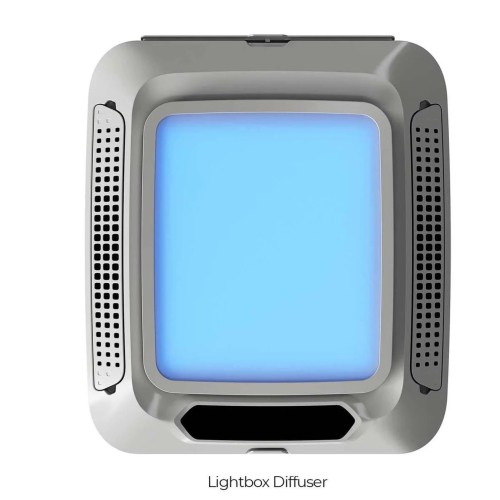

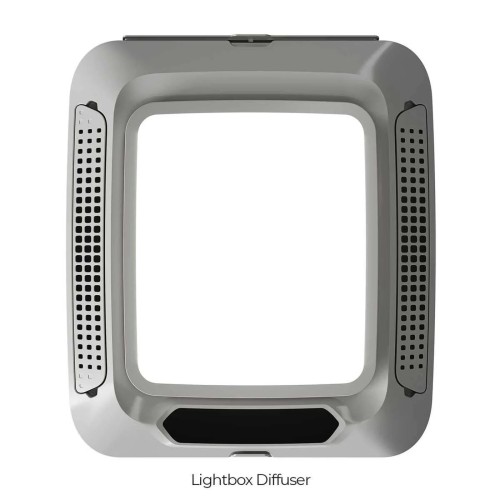

·        Plein-Aircon Lightbox model: This diffuser is designed to return natural light from the porthole and radiates and diffuses white or blue light, ideal for night driving.

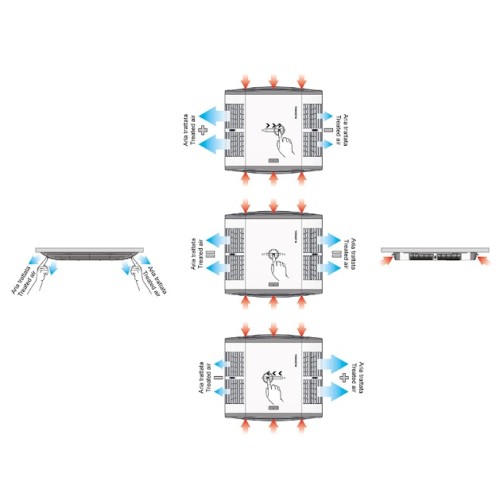

The latest Plein-Aircon models have been redesigned and manufactured entirely in Italy, with improved efficiency and user-friendliness thanks to the new configuration of the fins. The precision and directional flexibility of the air distribution have been optimised, allowing for even vertical distribution.

Specifications

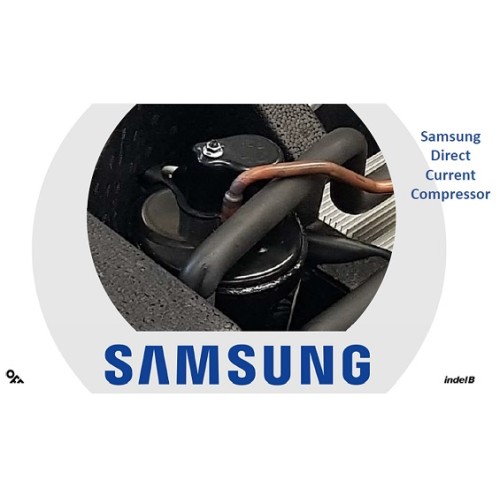

Compressor:                                                                     12V Samsung

Refrigerant gas:                                                                R134A

Cooling capacity:                                                              1200W to 4100 BTU (max.)

Air vents:                                                                            2 (front and rear)

Voltage Description                                                         12V DC

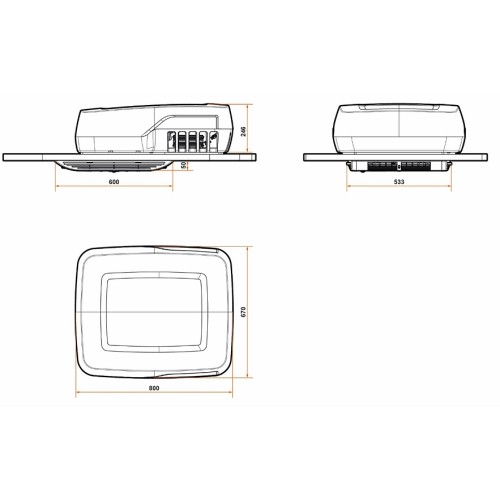

External roof mounted unit (H x W x L):                       246 x 670 x 800

Thickness Roof:                                                                 30 - 70mm

Weight                                                                                23.1kg

Cut Out                                                                               400 x 400mm

Wattage                                                                              1200W (Max.)

Application                                                                         Vehicles up to 6 meters in length

Consumption Cooling  *                                                  16 amp/h (auto) / 42 amp/h (max)

Country of Origin                                                               Italy

* at 32°C ambient temperature (internal and external)

The output is 1200W and it's not designed to cool the entire campervan but specifically to cool the sleeping area.
