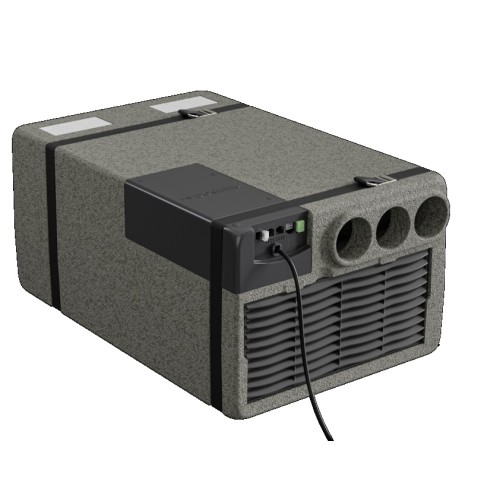

Dometic FreshWell FWX4 Air Conditioner

Dometic FreshWell FWX4

Under-bench air conditioner for vehicles up to 8 m in length

Conveniently housed in the under-bench storage area in motorhomes or caravans, the FreshWell FWX4 is an efficient space-saving air-conditioning solution for vehicles up to 8 m in length.

If you have free under-bench storage space, you may want to consider installing your air conditioner there. By doing so, you can avoid adding extra weight to the roof, ensuring that the vehicle’s centre of gravity and external dimensions remain unchanged, and allowing it to still fit under the carport at home. With the Dometic FreshWell FWX4, we offer the most compact under-bench air conditioner available up to 2000 watts. Dometic FreshWell FWX4 is superbly quiet in operation. Its air diffuser system generates a pleasant air stream, which is distributed evenly over three air outlets with the help of accessories. The outlets can be positioned in the vehicle as required – concentrated at one point, and also in different rooms. With the matching DC kit, your under-bench air conditioner can even be used while driving.

·        Efficient cooling

·        Air distribution options

·        Remote control

Features:

·        The under-bench position means the vehicle's height is unaffected

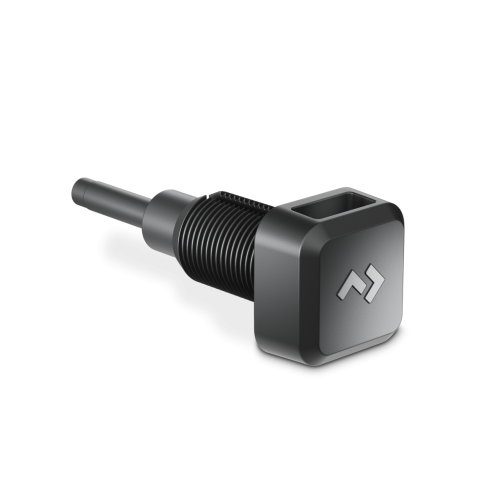

·        Better temperature regulation due to new room temperature probe

·        One of the lightest storage box air conditioners available and significantly lighter than roof air conditioners with comparable cooling capacity

·        Cooling capacity according to ISO 5151: 2000 W / 6824 BTU/h

·        Heating capacity according to ISO 5151: up to 2500 W / 8530 BTU/h

·        Minimal cabin noise due to high-performance operation and air distribution

·        Adaptable air distribution system concentrated either in one area or in different rooms

·        Soft-start for reliable start-up at campsites with low electrical protection

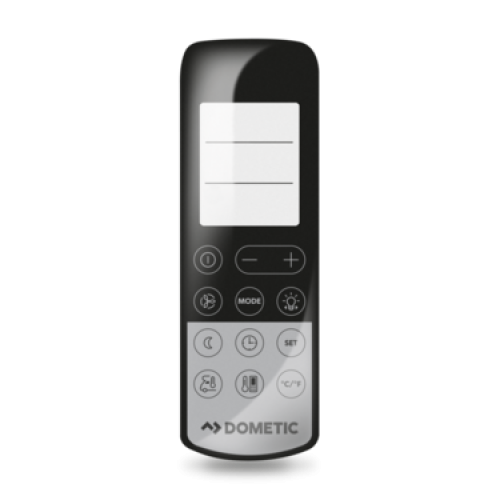

·        Convenient activation of all functions by remote control

Specifications FreshWell FWX4:

External unit dimensions (d x h x w) [mm]                           628 x 286 x 400

Net weight, [kg]                                                                          21kg

Input voltage (AC), [V]                                                               220-240

Input frequency, [Hz]                                                                50/60

Required AC circuit protection max, [A]                                10

Cooling capacity (ISO 5151), [W]                                             2000

Heating capacity (ISO 5151), [W]                                             2500

12v DC inverter Kit

The 12v DC inverter kit is wired into the motorhomes/campervans vehicle battery and will only work whilst the engine is running, as the power output of the air conditioner unit would flatten the leisure batteries in a very short period of time (matter of minutes). - This is an aftermarket inverter (Not Dometic) with switching relay.
