Camos Jewel Camera system

Product Code: Camos Jewel

Available Options

     0 reviews  |  Write a review

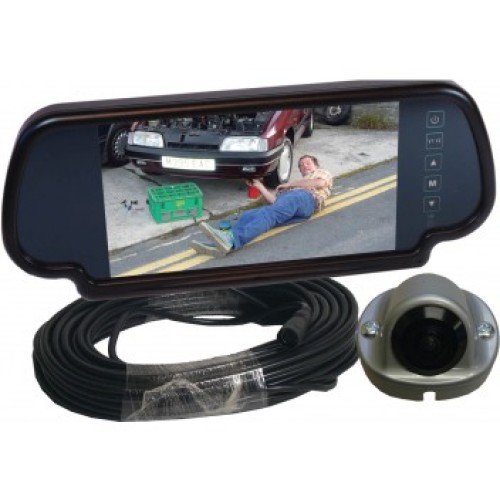

For almost any motorhome, caravan or van with a blind spot at the back, Camos's "Jewel" rear-view camera system is the neatest and most effective way of getting rearward vision, both when driving forward and when reversing.

Up until now, if you wanted to be able to see what was going on behind your vehicle when driving normally and when reversing, the only options were a camera with either twin lenses or a motor to change the camera's viewing angle. Neither system is ideal: motorised cameras tend to be expensive and can fail, while twin-lens models are either expensive or clunky looking and of poor quality.

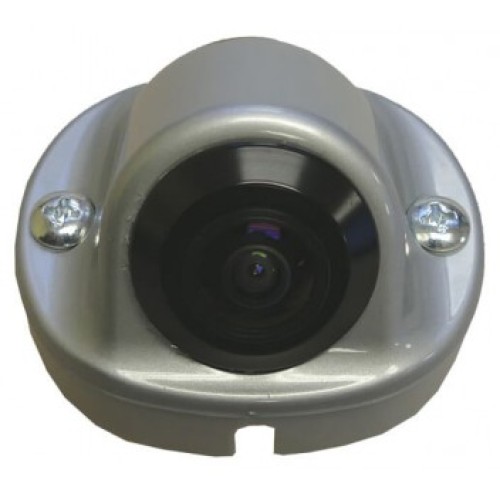

"Jewel" systems change views depending on whether the vehicle is in a forward or reverse gear and yet only have one lens and no moving parts. They're very discreet and, being made by Camos, you can be assured that they are very well made and will last for many years. How do they work? Ingenious software is how, and the results are amazing.


Nominal Voltage - V:                      12

Camera housing:                             Alloy / Stainless Steel

Camera Type:                                   1.3 Mega Pixel CMOS

Viewing Angle Drive view:            80(Horizontal) 60 (Vertical) 95 (Diagonal)
Viewing Angle Reverse view:       120(Horizontal) 90 (Vertical) 140 (Diagonal)

Min. Illumination:                            0.2Lux (F=2.4)

Operating temp:                              -20 degrees C to 60 degrees C

Camera dimensions:                       60mm width x 40mm depth x 45mm height

Cable supplied - M:                        18

Camera protection rating:            IP68


MONITOR SPEC                              7” Mirror                                           5” FTF
Monitor type:                                  7" mirror monitor                           5" Digital TFT LCD Monitor

Screen specification:                      16:9 Wide screen                            16:09

Inputs:                                                pre-wired connection                    pre-wired connection

Monitor dimensions - mm:           255 x 110 x 30                                 140 x 83 x 20

Weight - Kg:                                     1.728                                                  1.33

Warranty - years:                            2                                                          2
