VB Coilspring - Fiat Ducato / Peugeot Boxer / Citroen Relay 2006> onwards X250 X290 FRONT

Brand: Fiamma
Product Code: Coilspring - X250-X290

Available Options

     0 reviews  |  Write a review

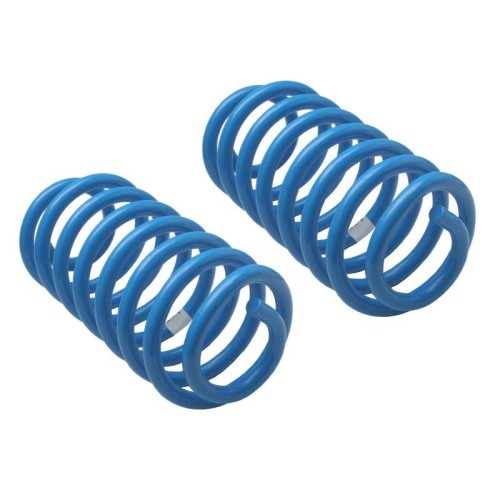

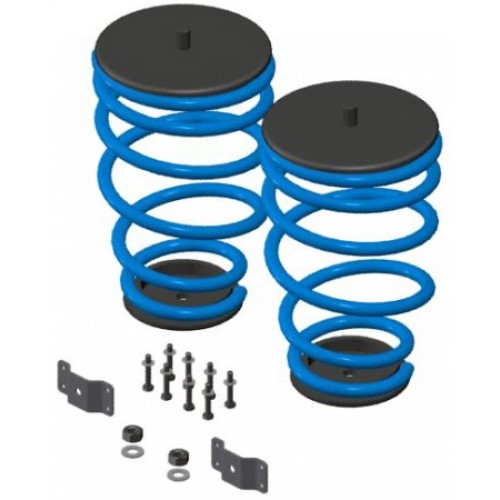

Mounting reinforced coil or leaf springs is a non-adjustable solution for suspension problems. An additional spring leaf is mounted to the existing coil or leaf spring(s). Reinforced springs will usually ensure that the vehicle returns to its original ride height ( if not higher), thus increasing the suspension travel and improving stability. This adjustment will however make the suspension more rigid ( harder) and therefore reduces the ride comfort. This solution is often used for vehicles that are constantly heavily laden.

For Models:

X250 - X290 chassis
Fiat Ducato - 2006> onwards
Peugeot Boxer - 2006> onwards
Citroen Relay - 2006> onwards

Difference in ride height (front axle) on X250-X290 models:


VB-CoilSpring Comfort

+/- 30‑mm at 1700‑kg

+/- 20‑mm at 2100 kg


VB-CoilSpring Light

+/- 45‑mm at 1700‑kg

+/- 35‑mm at 2100 kg


VB-CoilSpring Heavy

+/- 60‑mm at 1700‑kg

+/- 50‑mm at 2100 kg


Original ride height Basic vehicle

- Measured on a standard vehicle, not taking into account the rear overhang.

- Values may vary.
